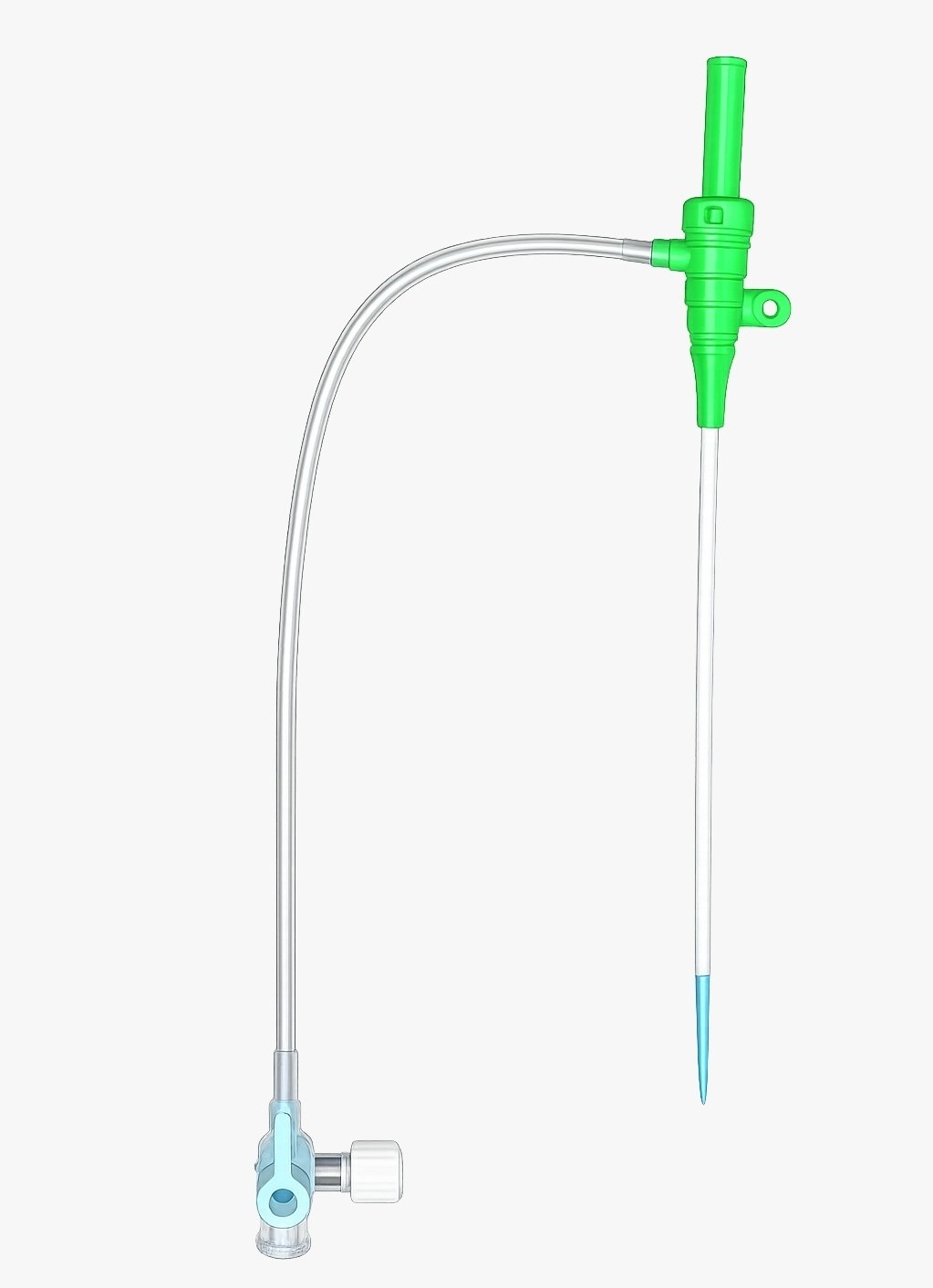

Introducer Sheath

Technical Specifications

Parameter Available Options
Sheath Size 5F, 6F, 7F, 8F
Sheath Length 7 cm, 11 cm
Guidewire Options 0.018", 0.021", 0.035", 0.038"
Guidewire Type Straight Tip / J-Tip
Needle Options 18G, 21G
Sterility EO Sterilized

Precision Access Starts Here

Designed to facilitate safe and efficient vascular access, the RazorTipTM Introducer Set provides smooth catheter introduction, reliable hemostasis, and excellent procedural control across a broad range of diagnostic and interventional applications.


• Atraumatic tapered Sheath and dilator tip for smooth vascular access.


• Advanced cross-cut hemostatic valve technology ensures effective hemostasis, supporting procedural efficiency and operator confidence.


• Refined sheath-dilator interface for reduced insertion resistance and enhanced ease of access.


• Colour-coded hub enables instant identification of sheath French size during procedures.


• Side port with 3-way stopcock enables convenient flushing, pressure monitoring and contrast administration.


• Secure locking mechanism ensures stable sheath-dilator engagement during insertion.


• Available in femoral and transradial configurations.


• Wide range of French sizes, sheath lengths and guidewire combinations to meet diverse clinical requirements.

Product Information

  • Product:

    Introducer Sheath
  • Variants:

    RazorTipTM Introducer Sheath
  • Rating:
